Entrance area monitoring with CabSafe™

The 2019 North American Elevator Safety Code (A17.1-2019 / B44-19; A17.1-2022 / B44-22) defines new and clarifies existing requirements for the means of detecting persons or objects between the doors (2D) or approaching the elevator (3D).
Support Request Troubleshooting

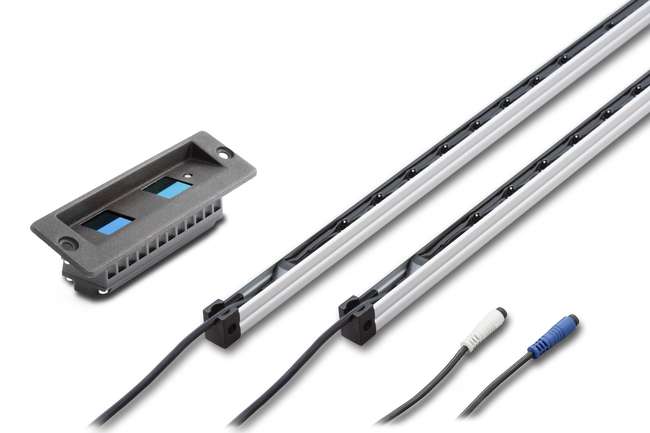

CEDES CabSafe™ system, consisting of a Controller, a 2D light curtain and a 3D TOF sensor, can fulfill all these code requirements and more.



Technical Support:

Andrew Cleek
Senior Product Manager
Phone: +19725103423

Andrew.Cleek@cedes.com

Applications

  • Entrance area monitoring for all types of elevators

Features

CabSafe™ 3D

  • Reduces risk of accidents caused by being hit by the doors
  • Reduces risk of damage caused by objects striking the elevator doors
  • Reliable detection of people and objects in front of the cab using TOF technology
  • Fulfills detection requirements ofA17.1-2019 / B44-19; A17.1-2022 / B44-22
  • Ideal for both new installations and modernization
  • Flush and surface mounting options available
  • Third-party certified to fulfill ASME A17.1-2019 / B44-19; A17.1-2022 / B44-22 requirements

CabSafe™ 2D

  • Ideal for both: static and dynamic installations
  • Criss-cross beams for a reliable detection
  • Meets ASME A17.1-2019 / B44-19; A17.1-2022 / B44-22 code detection requirements
  • Meets all requirements under EN81-20

Advantages

  • Not disturbed by metal objects in the field
  • Can detect moving people and objects
  • Clearly defined and stable detection area
  • Fully testable with doors fully open as required by the new standard
  • Not subject to upcoming FCC limitations of frequency bands that currently allows
    UWB for interference protection

Benefits

  • State-of-the-art 3D infrared image sensor for true 3D protection
  • Transom mounted – flush and surface mounting available
  • Fully compliant with all 2D and 3D detection requirements in A17.1-2019 / B44-19; A17.1-2022 / B44-22

Downloads

CabSafe - Overview and ordering information

Manual CabSafe 3D Sensor & Controller

White Paper – Elevator Safety Code

Manual CabSafe 2D light curtain

White Paper – CabSafe for Wider Doors

Quickguide

White Paper - Challenges w/ 3D light curtains

Consultant's Specification

A17.1-2019 / B44-19; A17.1-2022 / B44-22 Liftinstituut Certificate

CE / UKCA Declaration CabSafe System

Installation accessory - Vision Shield

Videos

Benefits - CabSafe system

Center opening doors

Video

CabSafe movie
Center opening door with CabSafe
